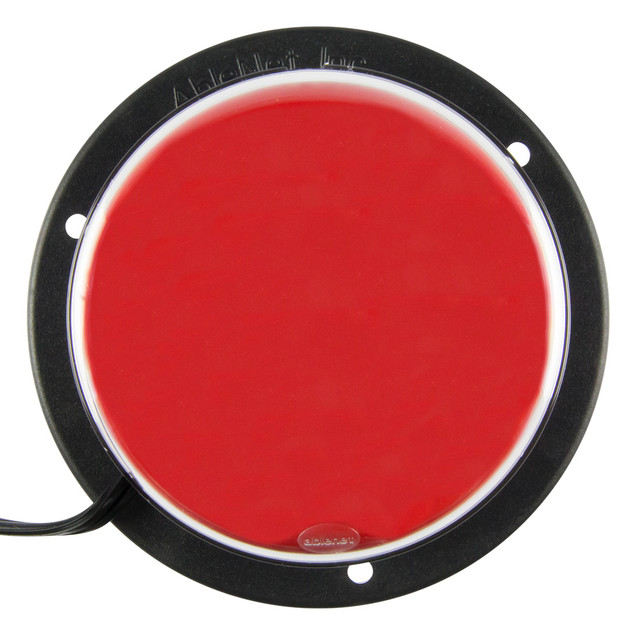

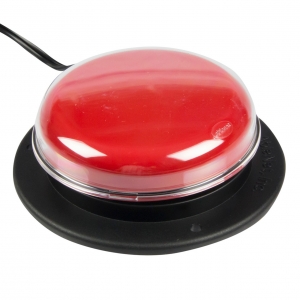

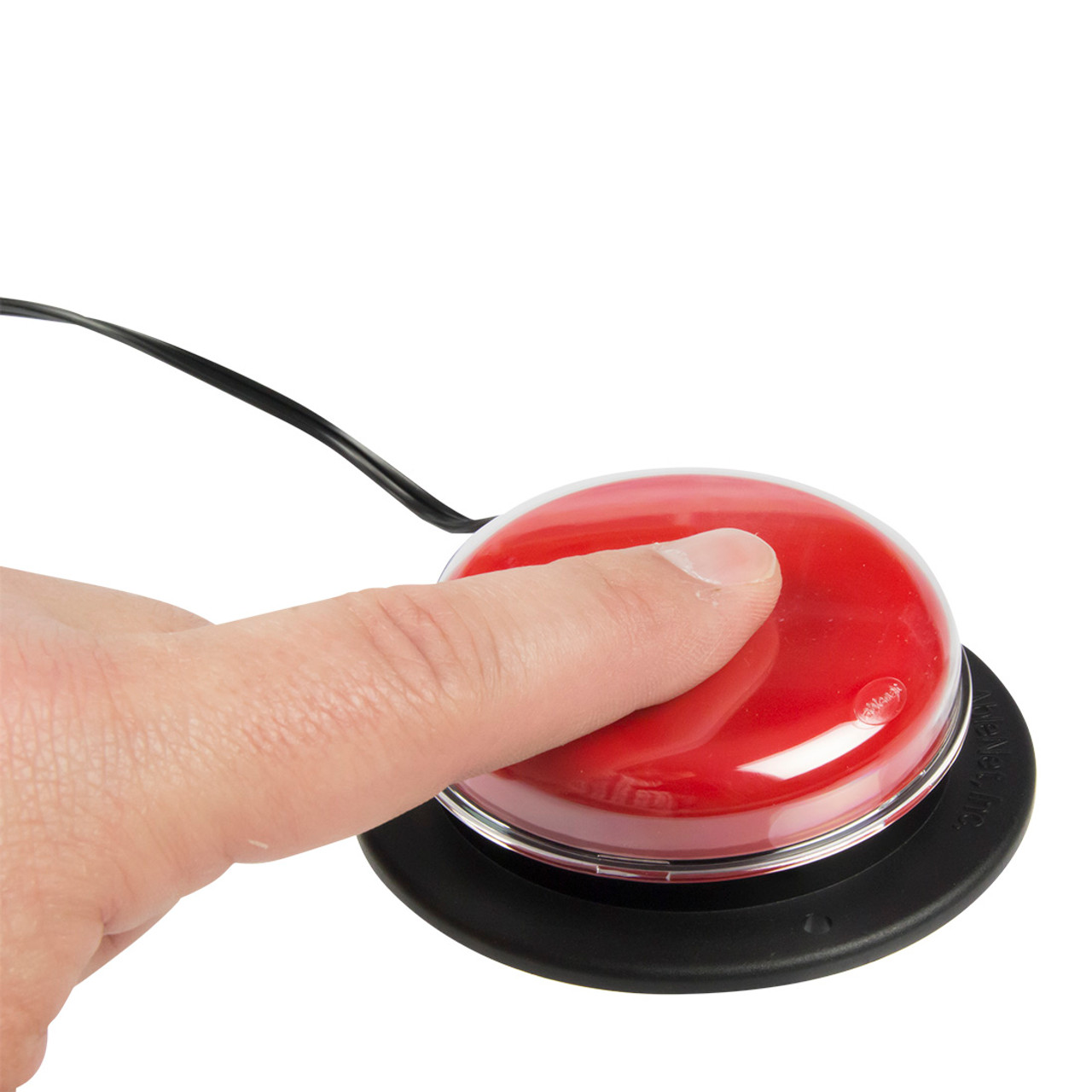

The Jelly Bean is a simple mechnical switch which can be used to control speech generating devices, toys, environmental control units and computers. The round surface area is 63.5 mm (2.5 inches) in diameter and when activated provides a definite auditory "click" and travel of approximately 3 to 4 mm. This auditory and proprioceptive feedback can be useful when the switch is out of sight, for example mounted as a head switch, or for knee or elbow access. This switch can be positioned for use at almost any switch site. Mounting accessories are available for this purpose. The switch has three screw holes around the base for mounting, or it could easily be secured to a surface with hook and loop fastener. The colourful tops are interchangeable. Red, blue, green and yellow caps are supplied with the switch. The cable is 190 cm long and the jack is a 3.5mm phono plug.
The Jelly Bean is one of the most well known switches, long considered the 'standard' in the industry. It is a simple mechnical switch which can be used to control speech generating devices, toys, environmental control units and computers. The round surface area is 63.5 mm (2.5 inches) in diameter and when activated provides a definite auditory "click" and travel of approximately 3 to 4 mm. This auditory and proprioceptive feedback can be useful when the switch is out of sight, for example mounted as a head switch, or for knee or elbow access. This switch can be positioned for use at almost any switch site. Mounting accessories are available for this purpose. The switch has three screw holes around the base for mounting, or it could easily be secured to a surface with hook and loop fastener. The colourful tops are interchangeable. Red, blue, green and yellow caps are supplied with the switch. The cable is 190 cm long and the jack is a 3.5mm phono plug.

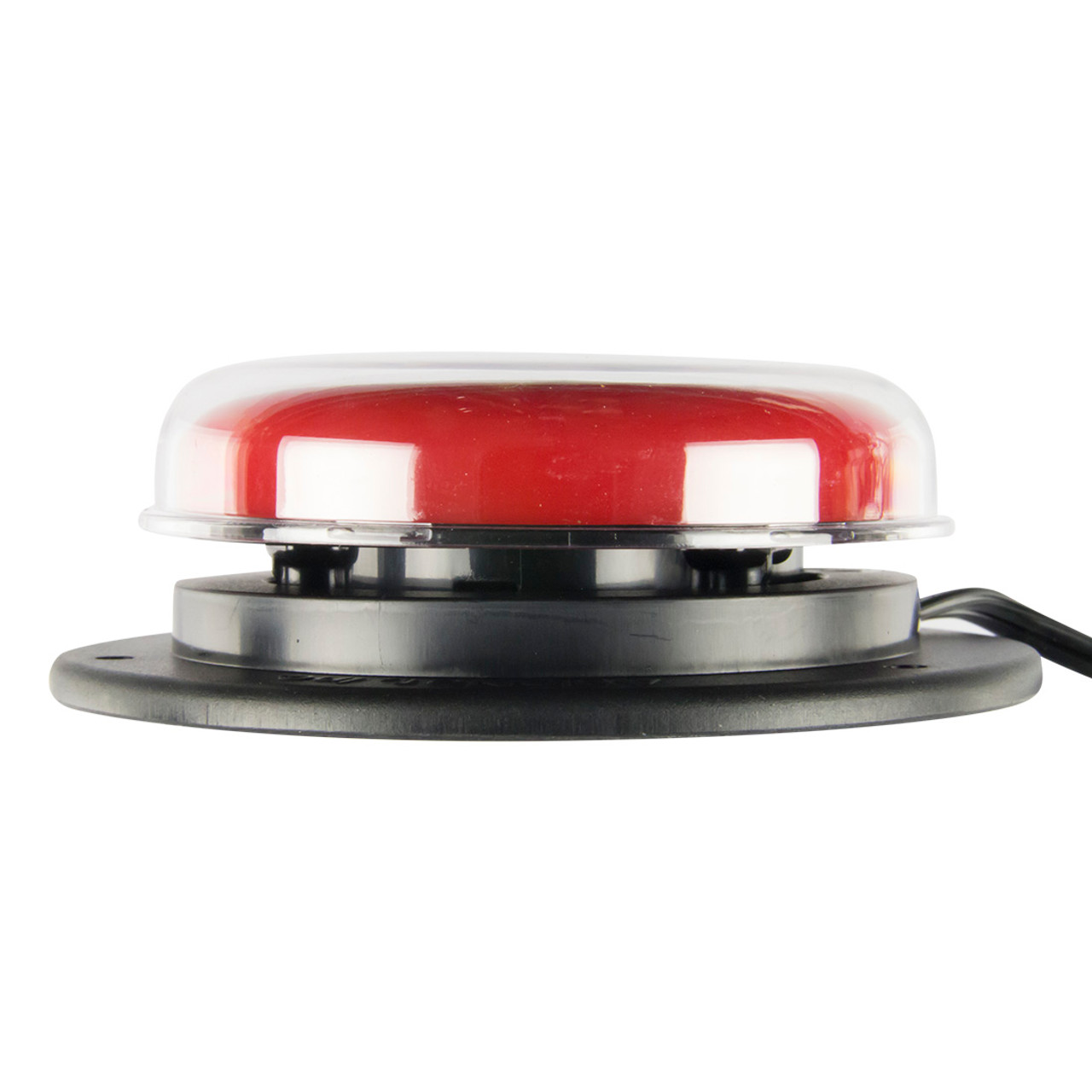

dimensions | 64 mm diameter x 25 mm high
weight of switch | 80 gms approx.
operating force | 71 g (2.5 oz)
travel before activation | 0.635 mm

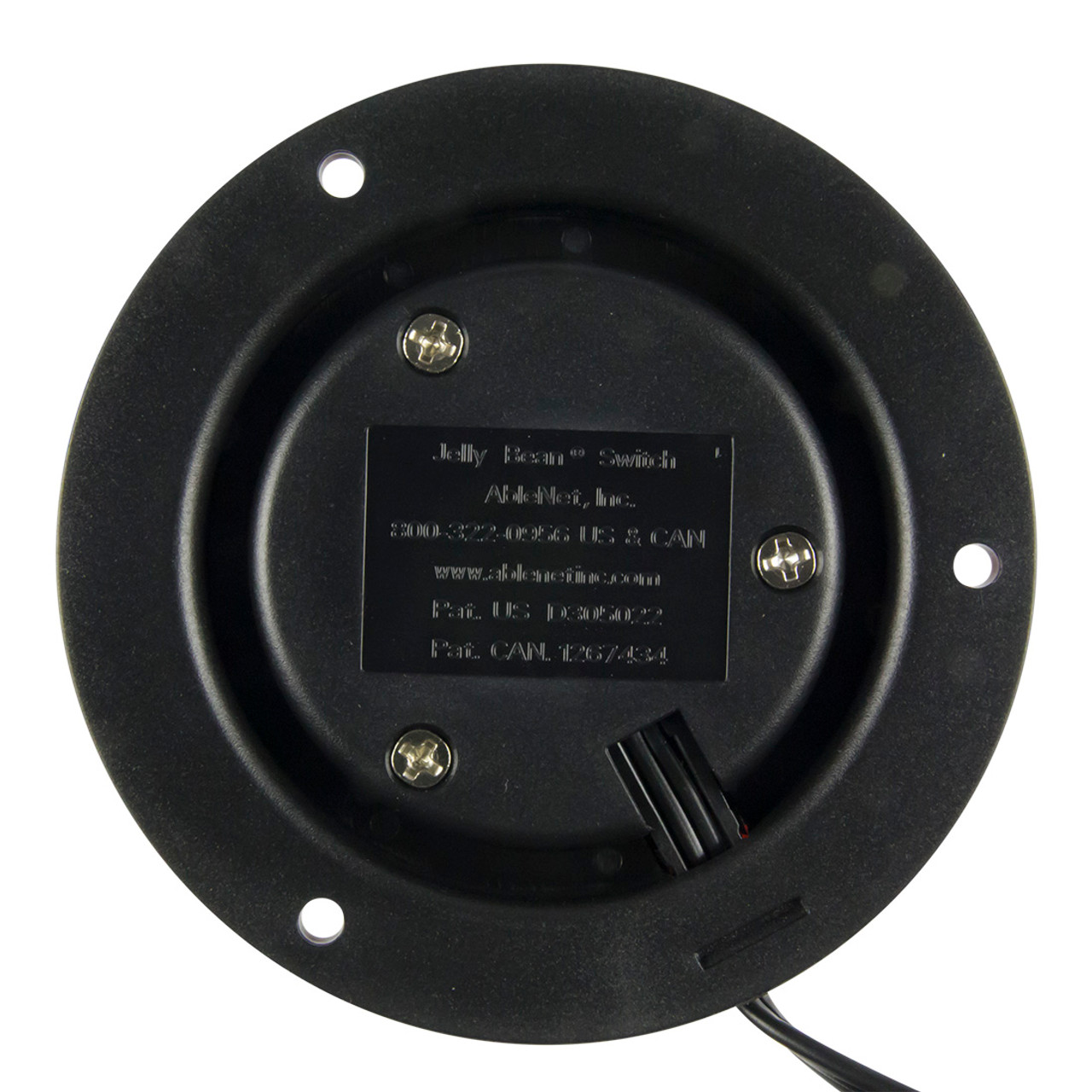

mounting | uses small triangular plate compatible with gooseneck mount with superclamp; or universal switch mounting arm, or customizable mounting arm. Three holes in base plate are available for screws to your own mount plate, or hook and loop fastener could be used.

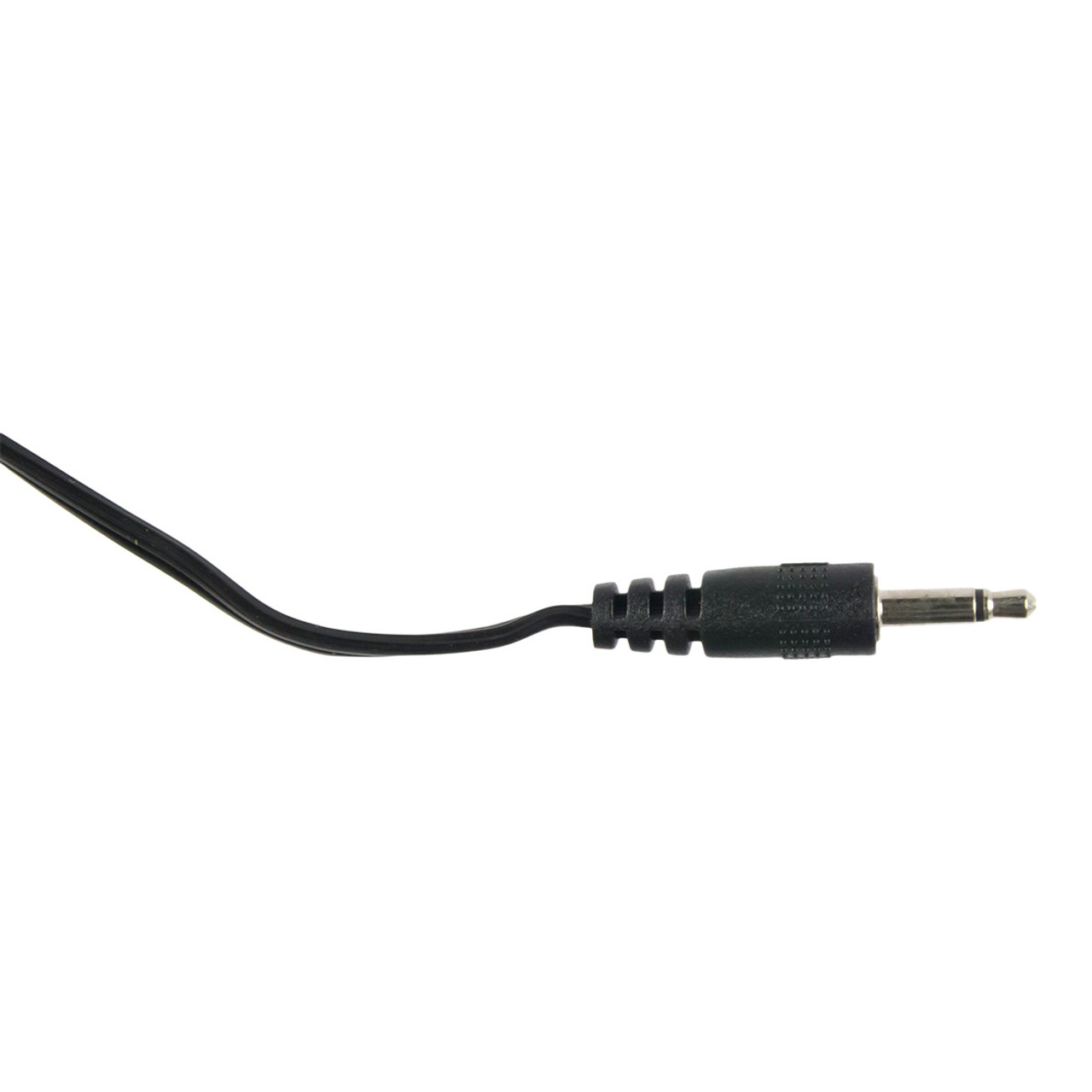

connection | 3.5 mm phono plug
Instructions (PDF download)
4 interchangeable coloured tops (red, blue, green, yellow)
quickstart guide
Part Code | Part Name / Description | Price | GST | |
---|---|---|---|---|
10033400 |
Jelly Bean Switch - 4 coloured tops.
Jelly Bean Switch - 4 coloured tops. POstage and packaging included in Pricing |
$206 | $0.00 | |
Multipacks | ||||
10033400-2 |
Jelly Bean Switch - Quantity x 2
Jelly Bean Switch - with 4 coloured tops. Quantity x 2 (This price only available when the order is for 2 Jelly Bean Switches) Delivery Included in Pricing |
$370 | $0.00 | |
10033400-4 |
Jelly Bean Switch - Quantity x 4
Jelly Bean Switch - 4 coloured tops. Quantity x 4 (This price only available when the order is for 4 x Jelly Bean Switches) Delivery Included in Pricing |
$782 | $0.00 |
